Plot Individual Metric with Cohort Reference — plot_with

Creates a complete plot showing an individual's metric trend with cohort reference percentile bands.

Usage

plot_with_reference(
  individual,
  reference,
  metric = "acwr_smooth",
  date_col = "date",
  title = NULL,
  bands = c("p25_p75", "p05_p95", "p50"),
  caption = NULL
)

Arguments

individual: A data frame with individual athlete data (from calculate_acwr, etc.)
reference: A data frame from calculate_cohort_reference().
metric: Name of the metric to plot. Default "acwr_smooth".
date_col: Name of the date column. Default "date".
title: Plot title. Default NULL (auto-generated).
bands: Which reference bands to show. Default c("p25_p75", "p05_p95", "p50").
caption: Plot caption. Default NULL (no caption).

Value

A ggplot object.

Examples

# Example with weekly data for smooth curves
set.seed(123)
n_weeks <- 40
dates <- seq(as.Date("2023-01-01"), by = "week", length.out = n_weeks)

# Individual athlete data with realistic ACWR fluctuation
individual_data <- data.frame(
  date = dates,
  acwr_smooth = 1.0 + cumsum(rnorm(n_weeks, 0, 0.03))
)

# Cohort reference percentiles with gradual variation
base_trend <- 1.0 + cumsum(rnorm(n_weeks, 0, 0.015))
reference_data <- data.frame(
  date = rep(dates, each = 5),
  percentile = rep(c("p05", "p25", "p50", "p75", "p95"), n_weeks),
  value = as.vector(t(outer(base_trend, c(-0.35, -0.15, 0, 0.15, 0.35), "+")))
)

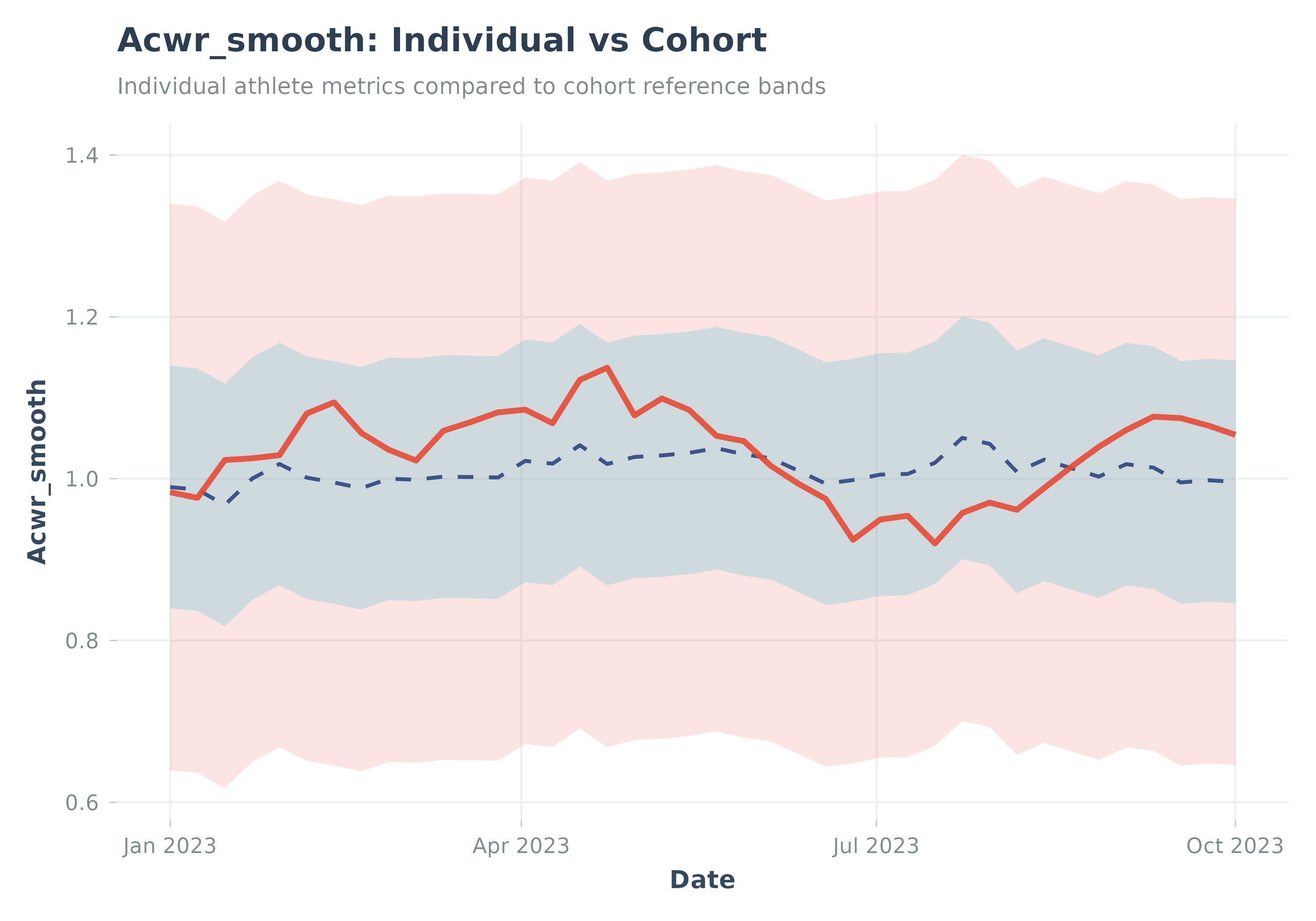

p <- plot_with_reference(
  individual = individual_data,
  reference = reference_data,
  metric = "acwr_smooth"
)
print(p)


if (FALSE) { # \dontrun{
plot_with_reference(
  individual = athlete_acwr,
  reference = cohort_ref,
  metric = "acwr_smooth"
)
} # }
